Maxwell Hrc8 12v Horizontal Freefall Rope/Chain Series 5/16" Chain 9/16" Min Rope

Be the first to review this product

$1,549.48 $1,549.48 What's this?

In stock

SKU

MAXHRCFF812V

Free Ground Shipping*

Condition: New

To Ship Out Next Business Day, Order This Item in the Next

MAXWELL HRC8 HORIZONTAL ROPE CHAIN WINDLASS 516 CHAINThe all new compact HRC6 and HRC8 are Maxwells horizontal versions of the latest innovative new vertical RC6 and RC8 automatic ropechain windlasses. The new HRC6 and HRC8 are packed with origin...

Products Q & A (2)

Customer Questions

for how many feet boat I have 43'

This is an anchor windlass. It is based on pulling weight and not boat length. Maximum Pull: 900lbs

Is a chain stopper required on maxwells hrc8

The chain stopper is not required.

Did you find what you were looking for?

Your question:

Your name:

get notification on email when the answer is ready

Your e-mail:

Details

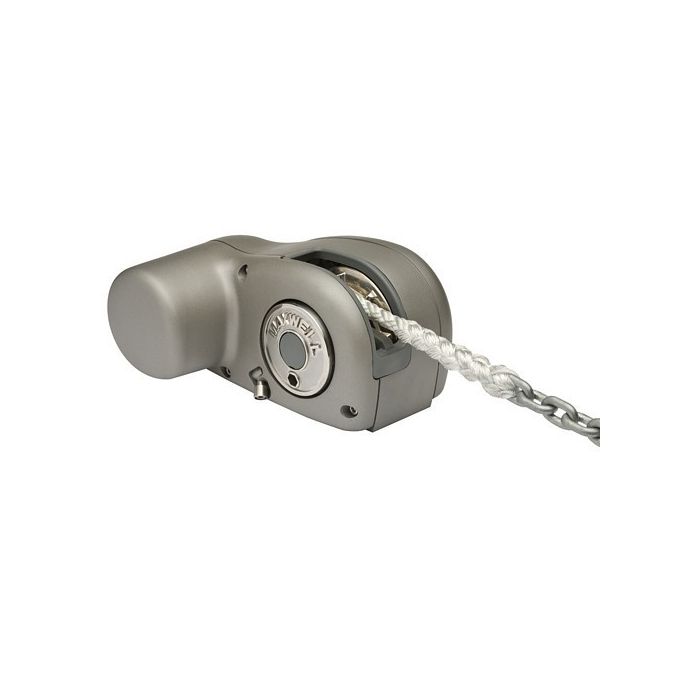

Maxwell Hrc8 12v Horizontal Freefall Rope/Chain Series 5/16" Chain 9/16" Min Rope

The all new compact HRC6 and HRC8 are Maxwell's horizontal versions of the latest innovative new vertical RC6 and RC8 automatic rope/chain windlasses. The new HRC6 and HRC8 are packed with original and proven features including rode management technology developed by Maxwell.

HRC8

Simple "bolt down" installation ensures effortless and rapid on-deck installation and set up
Guaranteed trouble free rode transition from rope to chain, by means of an innovative, proven and patented pressure arm system, within a safe enclosed design
Integrated composite nylon, through deck hawse pipe for ease of installation and smooth, snag-free operation
High efficiency spur gearbox incorporating a robust non-backwind mechanism
High speed, jam-free retrieval of rope and chain controlled from a remote panel mounted Up/Down switch
Emergency "free fall" function in the event of onboard power failure
Revolutionary new chainwheel - see over
Heavy duty, dual direction motor incorporating new technology features, including integrated wiring for quick electrical installation, is easily removed for simple routine electric brush maintenance
Now incorporating Maxwell's automatic free-fall technology. Simply activate the windlass 'free fall' lever, operate your down control (helm station or footswitch) and the windlass will freefall your anchor. Ready to lift the anchor? Activate the up control and the 'free fall' device automatically disengages allowing you to power up your anchor
Aesthetically pleasing above deck design, encapsulating the motor and drive in a watertight case, saving space below deck and allowing simple routine maintenance
Die cast, marine-grade, alloy case is hard anodized for unsurpassed marine protection
Kits include:windlass, on/off breaker panel, reversing soleniod, up/down panel switch, a clutch release handle

Specifications:

Model: HRC8
Maximum Pull: 900lbs
Chain Short Link: 5/16"
Rope Size (Nylon): 9/16"
Line Speed(Anchor Retrieval): 108'/min
Power Supply(DC): 12V
Motor Power: 600W
Net Weight: 25lbs

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Manufacturer Part Number: HRCFF812V

Quick Specs

More Information
Special Shipping Message	Free Ground Shipping*
Manufacturer Part Number:	HRCFF812V
Specifications:	Chain - Diameter (Inches) = 5/16" Freefall = Yes Rope Diameter (Inches) = 9/16" Vertical/Horizontal = Horizontal
