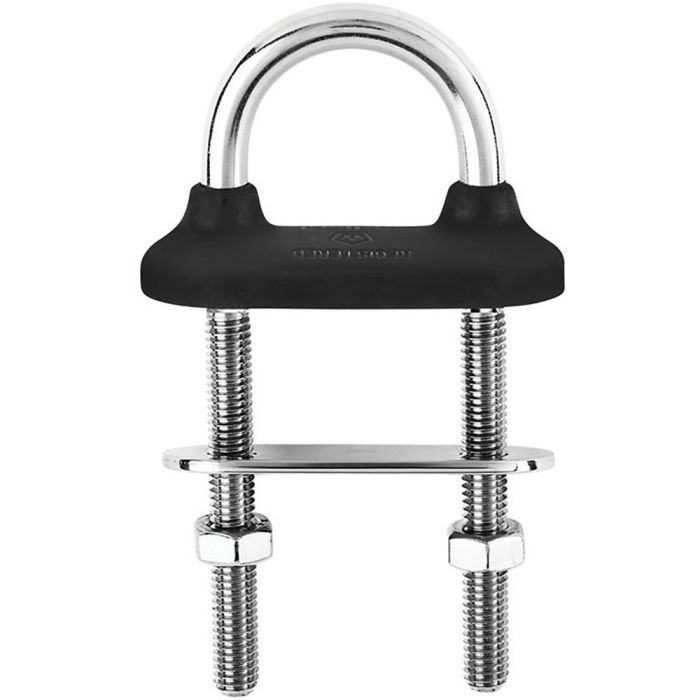

Wichard Black Watertight U-Bolt - 10mm Diameter - 25/64" - 110mm Length - 4-21/64"

Wichard Black Watertight U-Bolt - 10mm Diameter - 25/64" - 110mm Length - 4-21/64"

Black Watertight U-Bolt - 10mm Diameter - 25/64" - 110mm Length - 4-21/64"

Features:

• Fully drop-forged product with high-quality stainless steel
• Outstanding working and breaking loads
• Complete water-tightness thanks to the resistant rubber collar (black color)
• Easy installation (no need to use a waterproof sealant)
• Delivered with bolts and counter-plate
• Max tightening torque: 36 nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks…

Specifications:

• Materials: 316L stainless steel grade
• Color: Black
• Working load: (lb) 7930 / (kg) 3600
• Breaking load: (lb) 15430 / (kg) 7000
• Weight: (lb) 0.525 / (g) 238

Dimensions:

• Length: (inch) 4 21/64" / (mm) 110
• A: (inch) 1 37/64" / (mm) 40
• B: (inch) 1 1/32" / (mm) 26
• C: (inch) 2 9/16" / (mm) 65
• D diameter: (inch) 25/64" / (mm) 10

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
