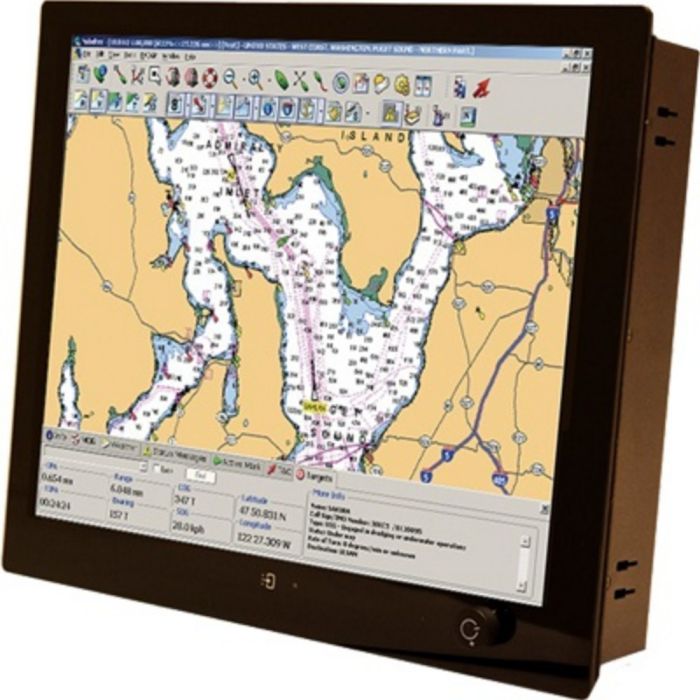

Seatronx 15" Sunlight Readable Touch Screen Display

Seatronx 15" Sunlight Readable Touch Screen Display

15" Sunlight Readable Touch Screen Display

Seatronx multi-input rugged displays are not only durable but are perfect for today's sleek glass bridge helms in sizes from 12″ to 27″.

The SRT display pairs with GARMIN giving you the ultimate black box navigation solution using Garmin’s fully integrated GPSMAP® 8700 processor and Seatronx SRT series displays.

Features:

• Mounting - Panel Mount , Vesa Mount
• Dimensions - 14.295" x 12.02" x 2.28"
• Cutout Dimensions -  13.58" x 11.30" x 2.40"
• Projected Capacitive Touch
• Optical Bonding
• Optional Remote Control

Technical Specifications:

• Diagonal (active area) Inch - 15"
• Native Resolution (Pixels) - 1024x768
• Contrast Ratio - 700:1
• Brightness - 1800
• Viewing Angle (left, right) - 80, 80
• Viewing Angle (up, down) - 60, 80
• Backlight Dimming - 0 - max
• Backlight Lifetime (Hrs) - 50,000
• Input terminal x1 HDCP HDMI - HDMI, DVI, VGA, Comp
• Power Source - 9-34V + and -
• Power Consumption (AMPS @ 24VDC) - 2.8
• Inlet Plug DC Power - Screw Terminal
• Sealing Front - IP68 with Potentiometer
• Operating Temperature (°C) - -30 to 85
• Storage Temperature (°C) - -30 to 85
