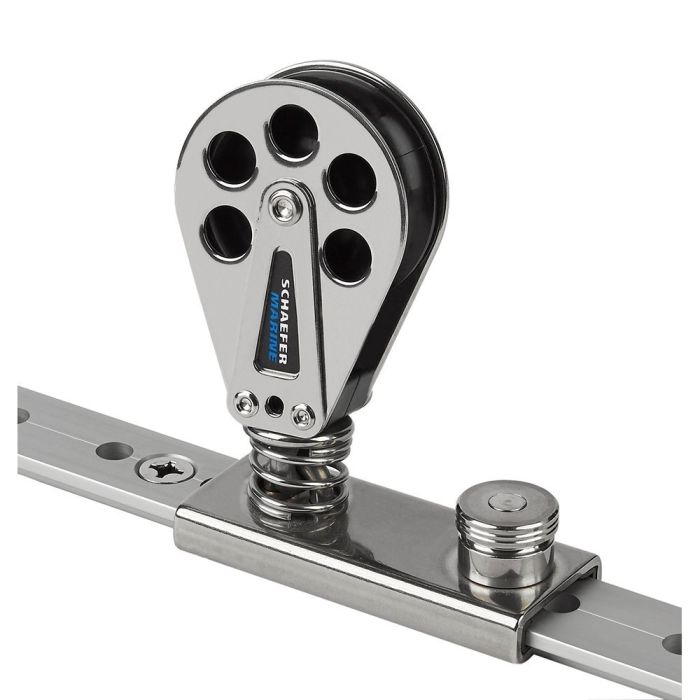

main product photo

Schaefer Spring Loaded/Lined Slide/Stainless Steel F/1-1/4" T-Track

Be the first to review this product
Special Price $269.01 Regular Price $394.95
In stock
SKU
SCH705-92

Free Ground Shipping*

Condition: New

To Ship Out Next Business Day, Order This Item in the Next
Add to Wish List Add to Compare
Email

SCHAEFER SPRING LOADED SINGLE BLOCK STAINLESS STEEL LINEDSpring LoadedLined SlideStainless Steel for 114 TTrackDelrintrade sheave ensures smooth operation and high safe working load Stainless Steel cheeks and stainless steel slider ensure re...
Customer Questions
No Questions
Did you find what you were looking for?
Details

Schaefer Spring Loaded/Lined Slide/Stainless Steel F/1-1/4" T-Track

Spring Loaded/Lined Slide/Stainless Steel for 1-1/4" T-Track

Delrin™ sheave ensures smooth operation and high safe working load. Stainless Steel cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.

Specifications:

  • Track Size 1-1/4" x 3/16" (32 mm x 5 mm)
  • Max. Boat Length 33' (10 m)
  • Max. Boat Weight 12000 lbs. (5455 kg)
  • Max. Sail Area 520 sq. ft. (48 m2)
  • Sheave Diameter 2-3/8" (60 mm)
  • Max Line 1/2" (12 mm)
  • Length 4" (102 mm)
  • Width 1-9/16" (39 mm)
  • Height 4-15/16" (126 mm)
  • Bearing Height 2-3/8" (67 mm)
  • SWL 2250 lbs. (1020 kg)
  • Weight 14 oz. (397 g)


Manufacturer Part Number: 705-92
