Samlex Solar Charge Controller - 12/24 Pwm - 30 Amp

Samlex Solar Charge Controller - 12/24 Pwm - 30 Amp

Solar Charge Controller - 12/24 PWM - 30 AMP

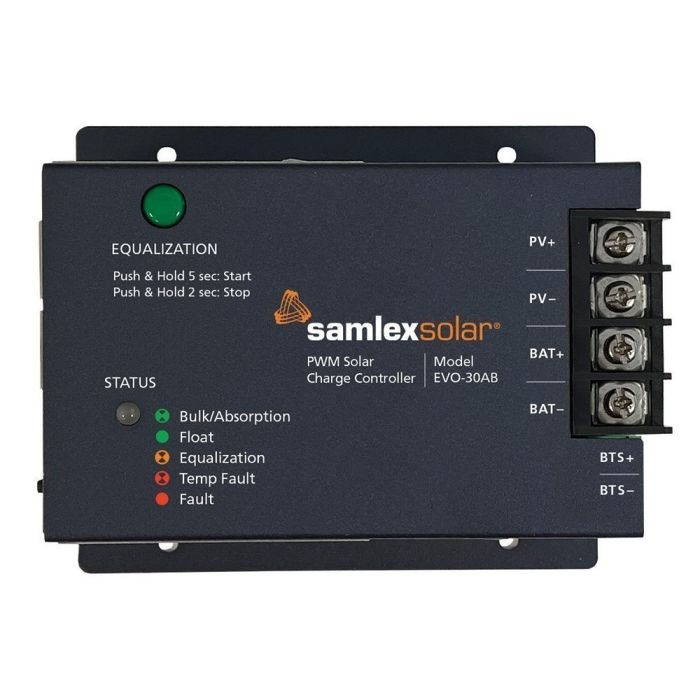

Use the Samlex EVO-30AB Charge Controller as a stand-alone 30 amp solar charge controller or expand the functionality of the EVO-RC-PLUS as the central display for both your EVO inverter/charger and your solar system.

Features:

• When connected to the EVO™ inverter/charger, the EVO-30AB will follow the programming set in the unit.
• Add the EVO-RC-PLUS and it will display the status for both the EVO™ inverter/charger and solar system from ONE remote display
• Compatible with most battery types including Lead Acid and Lithium-Ion (LiFePO4) batteries.
• Manage multiple panels up to 600W in a 12V system, or up to 1000W in a 24V system under specified conditions

Additional Features:

• Optional 30AB-TS Battery Temperature Sensor available.
• 30 Amp charging capacity
• 8 charge settings for different batteries
• Selectable battery equalization option
• Use with 12/24V batteries
• Compatible with EVO-RC-PLUS Remote Display (Optional)
• Increased functionality when used with an EVO™ Series Inverter/Charger

Specifications:

• Input: 12V / 24V
• Amps: 30 Amp
• Weight: 0.8 (lbs)
• Weight: 0.36 (kg)
• Dimensions: 4.81 x 1.87 x 4.15 (in)
• Dimensions: 12.21 x 4.75 x 10.54 (cm)

Applications:

• Recreation vehicles
• Service vehicles
• Boats
• Fieldwork
• Telecommunications
• Mobile offices
• Construction sites
