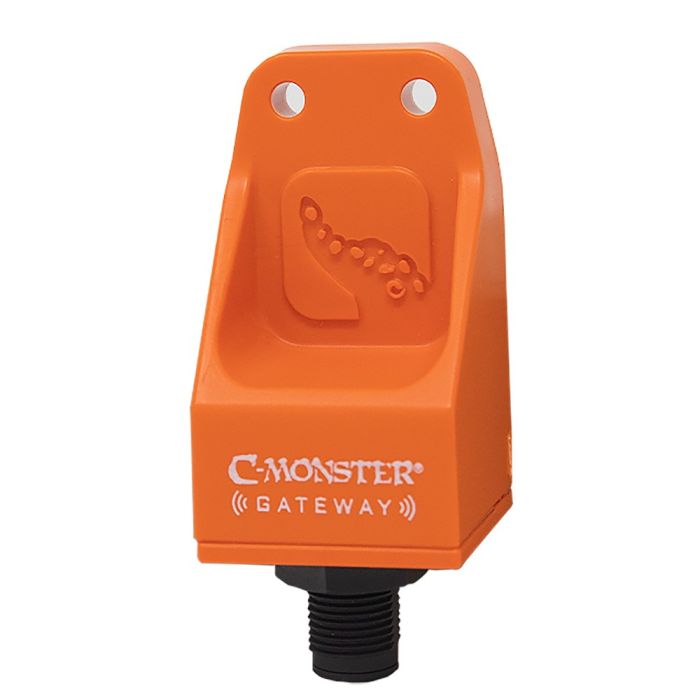

C-Monster Gateway

The C-Monster GATEWAY lets you harness the power of the C-Monster 2.0 network to connect, customize, and control your boat’s Power-Pole accessories.

The GATEWAY allows for immediate adoption of the wireless CM2 protocol by existing devices currently using NMEA2000 technology. Keeping your boat up-to-date with the latest technology is as simple as adding your new GATEWAY-enabled devices to the network.

The C-Monster network was built from the ground up specifically for the marine industry so it doesn’t have the limitations of previous wireless technology like Wifi and BlueTooth ®, including the ability to connect and control multiple products at once. It also allows multiple systems to integrate seamlessly to maximize efficiency.

Features:

• Enables C-Monster functionality on existing accessories
• Instantly connect new accessories with the touch of a button
• Includes magnetic key, 1’ cable and connector
• Seamlessly integrates multiple systems to maximize efficiency
• Easy installation and setup

Specifications:

• Compatible GARMIN MFDs: GPSMAP 9000 series (19”/22”/24”/27”), GPSMAP 8400/8600xsv (10”/12”/16”), GPSMAP 8400/8600 (17”/22”/24”), GPSMAP 7x3/9x3/12x3/16x3, GPSMAP 10x2xsv/12x2xsv, ECHOMAP Ultra (10”/12”), ECHOMAP UHD (7”/9”), ECHOMAP Ultra 2 (10”/12”), ECHOMAP UHD 2 (6”/7”/9”)
• Compatible SIMRAD MFDs: NSS Evo3, NSO Evo3, NSO Evo2, GO 12 XSE, GO 9 XSE, GO 7 XSR, GO 5 XSE, IDS, and all 2020-newer models
• Compatible Lowrance MFDs: HDS Live, HDS Carbon, HDS Pro, Elite Ti2, and Elite FS
• Compatible Mercury Vessel View MFDs: 903, 703, and 502
• Compatible Raymarine MFDS: Axiom, beginning with Lighthouse 4.7 software update (August 2024)
• Waterproof case (IP67)
• Weight: 1.4 oz.
• Dimensions: Length - 1.27", Width - 1.37", Height - 2.76"
• 3-Year Warranty
• The NMEA 2000 Gateway has a LEN (Load Equivalency Number) of 1 (≤ 50 mA) for use in planning network installations. The device calculation of the LEN was determined based on an operating voltage of 9 VDC.
