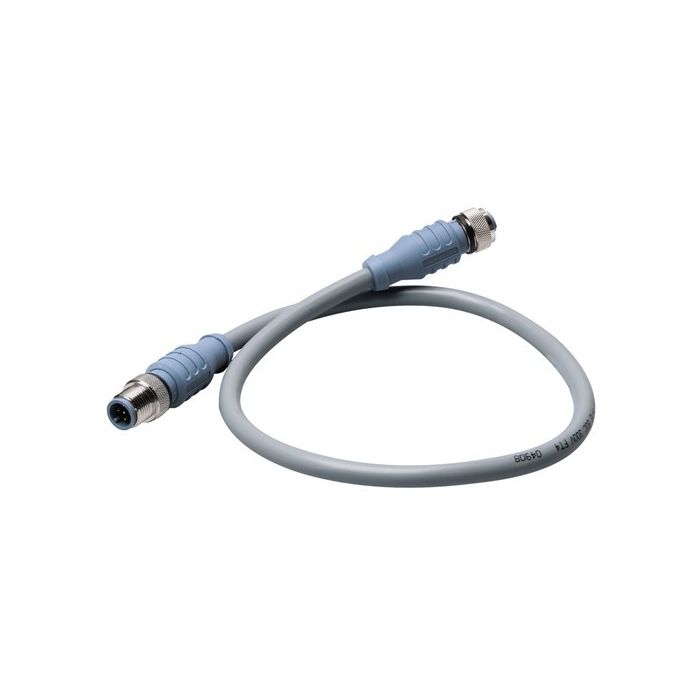

Maretron Micro Double-Ended Cordset - 6 Meter

Rating:

100 % of 100

1 Review Add Your Review

Special Price $57.27 Regular Price $60.00

In stock

SKU

MARCM-CG1-CF-06.0

Free Ground Shipping*

Condition: New

To Ship Out Next Business Day, Order This Item in the Next

Doubleended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for errorfree connection and they are waterproof for continued operation even while submerged in the...

Products Q & A

Customer Questions

Did you find what you were looking for?

Your question:

Your name:

get notification on email when the answer is ready

Your e-mail:

Details

Maretron Micro Double-Ended Cordset - 6 Meter

Mechanical

Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray

Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray

Contact Mat/Plating: Brass/Gold

Coupling Nut Mat/Plating: Brass/Nickel

Connector Outside Diameter: 0.59"
Electrical

Current Rating: 4.0 Amps

Voltage Rating: 250 V
Cable

Outer Jacket Mat/Color: PVC/Gray

Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)

Number of Conductors: 4X22 AWG, 22 AWG Drain Wire

Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
Environmental

Protection Class: IEC IP68, NEMA 1,3,4,6P

Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
Approvals

(Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,
AWM 80 deg C 300V

(Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,
AWM I/II A/B 80C 300V FT4

NMEA: NMEA 2000 Approved

Manufacturer Part Number: CM-CG1-CF-06.0

Quick Specs

More Information
Special Shipping Message	Free Ground Shipping*
Manufacturer Part Number:	CM-CG1-CF-06.0
