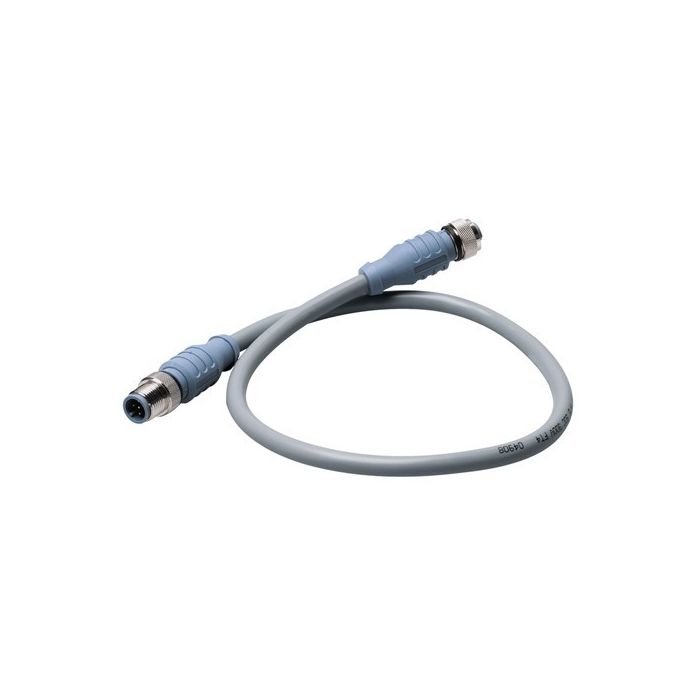

Maretron Micro Double-Ended Cordset - 4 Meter
Special Price
$49.20
Regular Price
$50.00
Free Ground Shipping*
Condition:
New
To Ship Out Next Business Day, Order This Item in the Next
Doubleended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for errorfree connection and they are waterproof for continued operation even while submerged in the...
Maretron Micro Double-Ended Cordset - 4 Meter Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray Contact Mat/Plating: Brass/Gold Coupling Nut Mat/Plating: Brass/Nickel Connector Outside Diameter: 0.59?Electrical Current Rating: 4.0 Amps Voltage Rating: 250 V Outer Jacket Mat/Color: PVC/Gray Conductor Insulation Material: HDPE (data pair), SRPVC (power pair) Number of Conductors: 4X22 AWG, 22 AWG Drain Wire Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair) Protection Class: IEC IP68, NEMA 1,3,4,6P Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F) (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4 NMEA: NMEA 2000 Approved
More Information
Special Shipping Message
Free Ground Shipping*
Manufacturer Part Number:
CM-CG1-CF-04.0
