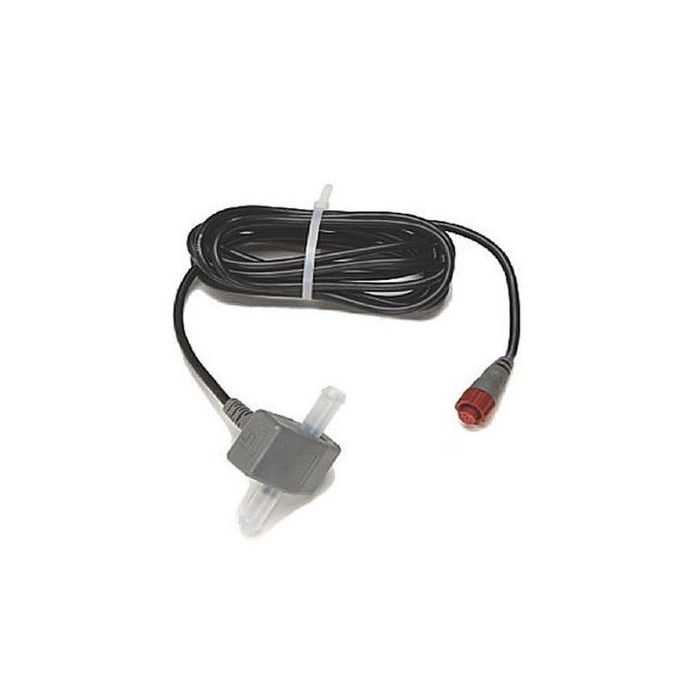

Lowrance Fuel Flow Sensor W/10' Cable & T-Connector
$237.00
In stock
SKU
LOW000-11517-001
Free Two Day Shipping*
Condition: New
Fuel Flow Sensor Gasoline only One required per engine Up to 3 engines supported Outputs Fuel Flow Tank Fuel Used Trip Fuel Used Seasonal Fuel Used Cable Length 10 Ft Fuel Line Diameter 38quot 95 mm Inside Diameter Flow Rate Measure...
Customer Questions
Lowrance Fuel Flow Sensor W/10' Cable & T-Connector
Fuel Flow Sensor with 10' cable & T-connectorFuel Flow Sensor Gasoline ONLY. 1 required per engine. Up to 3 engines supported.
Outputs:
- Fuel Flow
- Tank Fuel Used
- Trip Fuel Used
- Seasonal Fuel Used
Cable Length: 10'
Fuel Line Diameter: 3/8" (9.5mm) Inside Diameter
Flow Rate Measured: Optimized for 0.6-45 Gal/hr but can measure outside these values
Added Back Pressure to the fuel system: 0.5 PSI at 20 Gal/hr; 1 PSI at 40 Gal/hr
Installation Location: Above the max level of the fuel tank, in-line after the fuel filter and any Y's or T's in the line
Package: The Fuel Flow Sensor, N2K T and 2 (two) 1" hose clamps
Fuel Type: Gasoline only. The Fuel Flow Sensor does not operate diesel engine fuel systems
Hole required to route through a bulkhead: 22mm (7/8")
Multiple Fule Flow sensors possible: Yes
Manufacturer Part Number: 000-11517-001
