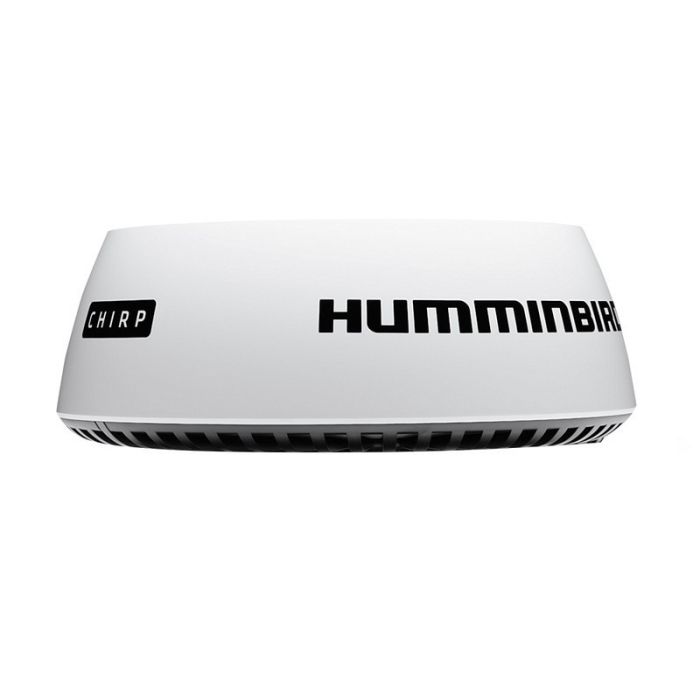

Humminbird Hb2124 Chirp Radar
$1,999.99
In stock
SKU
HUM750013-1
Free Two Day Shipping*
Condition: New
HUMMINBIRD HB 2124 CHIRP RADARHB2124 CHIRP RadarCompatible with select networking HELIX models and ONIX, Humminbird CHIRP Radar features CHIRP pulse compression, setting a new standard for compact solid state radar It delivers superior RADAR imagi...
Customer Questions
Humminbird Hb2124 Chirp Radar
HB2124 CHIRP RadarCompatible with select networking HELIX models and ONIX, Humminbird CHIRP Radar features CHIRP pulse compression, setting a new standard for compact solid state radar. It delivers superior RADAR imaging on both long and extremely short ranges. This translates to better situational awareness in low-visibility conditions and helps identify birds and floating obstacles for clues to where gamefish are located. You can also track weather and vessels with amazing definiton.
Features:
- Antenna Dimension - 21" Enclosed Dome
- Antenna Type - Patch Array
- Peak Power Output - 20W
- Transmit Frequency - 9354 to 9446 MHz
- Beam width (nominal) - 4.9° Horizontal and 20° Vertical
- Input Voltage - 12 or 24 VDC (Miniumum - 10.8 Volts, Maximum - 31.2 Volts)
- Networking - Ethernet
- Maximum Range Scale - from 1/16 to 24 nautical miles
- Power Consumption - Transmit mode - 17W; Standby Mode - 7W; Sleep Mode - 2W
- Duplexer - Circulator
- Pulse Widths @ 3 dB - 40 ns to 14.7µs
- CHIRP Lengths - 400 ns to 20µs
- CHIRP Bandwidth - Up to 32 MHz
- IF Bandwidth - 26 MHz
- Noise - Less than 4 dB
- Polarization - Horizontal
- Waterproofing - IPX6
- Weight - 12.3 lbs (5.6 kg)
- Compatibility Networking HELIX models and all ONIX models
Manufacturer Part Number: 750013-1
