Humminbird Hdr 650 Black, White, Or Chrome Bezel W/Tm Tranducer

Rating:

97 % of 100

41 Reviews Add Your Review

Special Price $126.72 Regular Price $169.99

In stock

SKU

HUM407860-1

Free Ground Shipping*

Condition: New

To Ship Out Next Business Day, Order This Item in the Next

HUMMINBIRD HDR 650 BLACK WHITE AND CHROME BEZELSHDR 650 InDash Digital Depthsounder The HDR 650 InDash Digital Depth Sounder gives you instant, reliable digital depth readings, and offers customizable bezel and face colors to complement italled gau...

Products Q & A (7)

Customer Questions

How long is the cord to the transducer?

Hi, this item includes a 20ft transducer cable, as well as a 36ft power cable

How shallow will it read?

The Humminbird Hdr 650 Black, White, Or Chrome Bezel W/Tm Tranducer comes with the XNT 9 28 and should handle depths up to 600 ft deep.

Can the transducer that comes with the unit be mounted in hull?

The included transducer is designed for the transom.

Does is give water temp as well?

This does not read temperature. It will only read depth.

The specs on this are very similar to HawkEye DepthTrax...do they have the same internals? what it IPX rating?

The specs are similar on the two units, they use very similar transducers. Information on the internals is proprietary and you will need to contact Humminbird or Hawkeye for that information. The HDR650 IPX rating is IPX7

I have limited space for the gauge , and need to know what the TOTAL installed diameter INCLUDING THE BEZLE is . Humminbird customer service was useless after 4 calls . BTW , I have already purchased the gauge but am afraid to open the package till I have an answer . THANKS ! Dave

The total diameter with the bezel is 2.5"

What color bezel is included??

Black, White and Chrome bezels are included in the package.

Did you find what you were looking for?

Your question:

Your name:

get notification on email when the answer is ready

Your e-mail:

Details

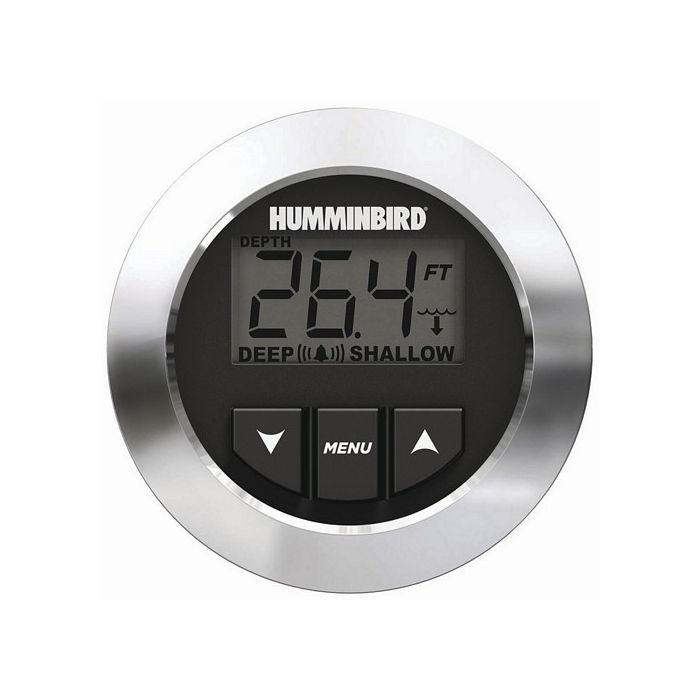

Humminbird Hdr 650 Black, White, Or Chrome Bezel W/Tm Tranducer

HDR 650 In-Dash Digital Depthsounder

The HDR 650 In-Dash Digital Depth Sounder gives you instant, reliable digital depth readings, and offers customizable bezel and face colors to complement italled gauges. This unit comes packed with a transom mount transducer. Bezel colors included: White, Black and Chrome. Face plate colors included: White and Black.

Highlights

Easy to Install into Existing 2 1/8 inch gauge opening
Completely waterproof
Easy to read large, backlit LCD display for use at night
Wires to Ignition Switch for Auto Power On
Shallow and Deep Depth Alarms
Reads in Feet
Tracks Bottom Up to 70 MP

Specs

1.25" LCD Display
200kHz operating frequency
600 ft depth
Deep/Shallow water alarms

Warning WARNING: This product can expose you to chemicals including 1,3-Butadiene which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer Part Number: 407860-1

Quick Specs

More Information
Special Shipping Message	Free Ground Shipping*
Manufacturer Part Number:	407860-1
Specifications:	Transducer Type = Transom Mount Shape = Round Screen Size = 1-1/4" Instrument Function = Depth
