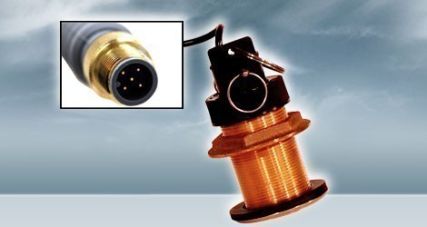

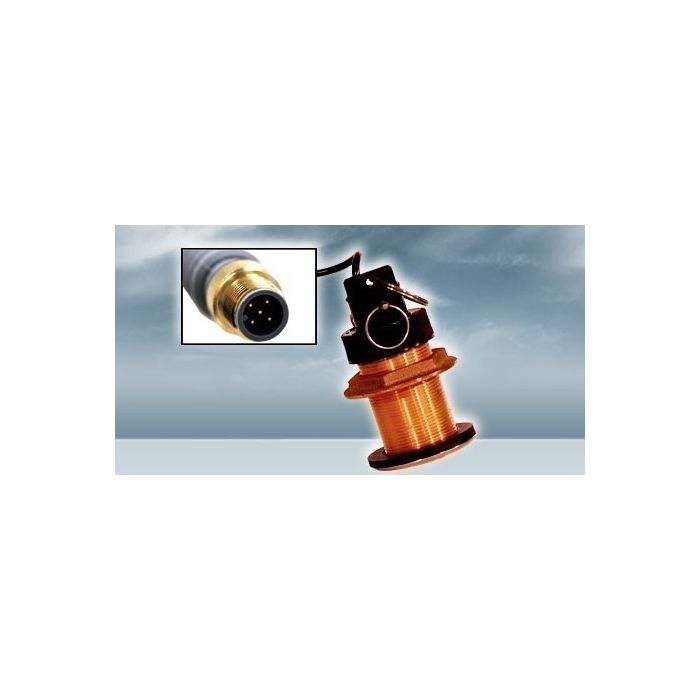

Furuno DT-800MSF - Airmar B617V Housing Style Transducer

Designed with Airmar's exclusive Broadband Ceramic Technology, the DT-800MSF's 235 kHz element improves resolution without sacrificing sensitivity. The higher power rating 100W RMS provides spot-on depth readings in as little as 0.45M (1.4') of water and can reach depths up to 180M (600')

Standard Features:

• Depth and temperature in one compact bronze housing
• Fast-response temperature sensor provides ±0.2°C (±0.1°F) accuracy

Specifications

• Weight: 1.5kg (3.4lb)
• Acoustic Window: Urethane
• Data Update Rate: 1 per second
• Minimum Sounding Depth: 0.5M (1.6')
• Maximum Sounding Depth: 180M (590)
• Pressure Rating: 3M (10')
• Pulse Rate: 20,000 p/nm* (5.6 Hz per knot)
• Smart Sensor Supply Voltage at 100% Sound Power Output: 10 VDC to 25 VDC
• Supply Current: 40 mA
• Standard Cable Length: 6M
• NMEA 2000® Load Equivalency Number (LEN): 4

  *p/nm = pulses per nautical mile
