Furuno 1kw Bronze Thru-Hull W/Temp & High Speed Fairing Block

Rating:

87 % of 100

4 Reviews Add Your Review

Special Price $831.81 Regular Price $900.00

In stock

SKU

FUR525T-BHD

Free Ground Shipping*

Condition: New

To Ship Out Next Business Day, Order This Item in the Next

525TBHD Bronze ThruHull Transducer with Temp and HighSpeed Fairing Block1kw50200 kHz with Diplexer15x21 degree Beam Angle at 50 khz3x5 degree Beam Angle at 200 kHzBronze ThruHull with Temperature10Pin ConnectorShips with HighSpeed Fairing Bloc...

Products Q & A

Customer Questions

Did you find what you were looking for?

Your question:

Your name:

get notification on email when the answer is ready

Your e-mail:

Details

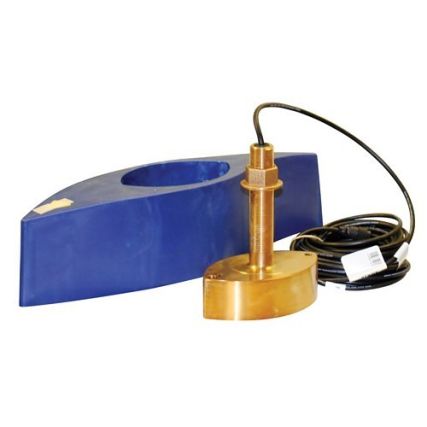

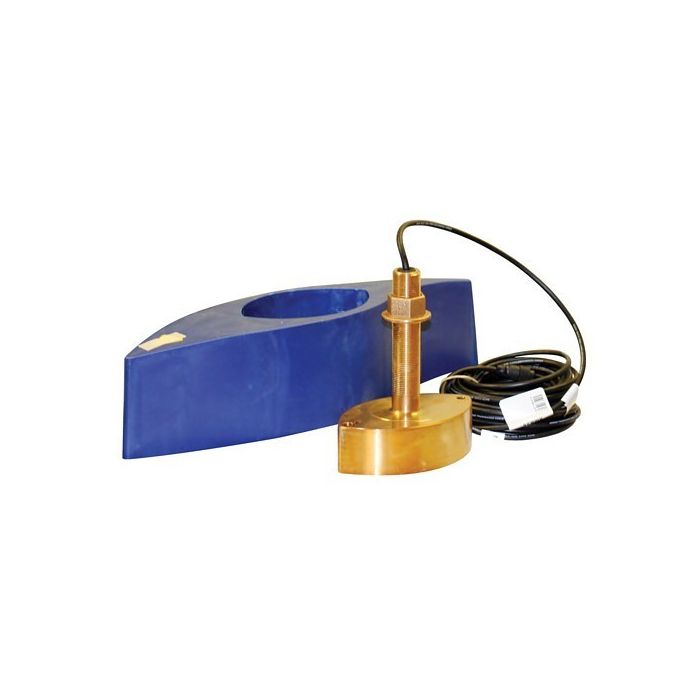

Furuno 1kw Bronze Thru-Hull W/Temp & High Speed Fairing Block

525TID-BHD Bronze Thru-Hull Transducer with Temp and High-Speed Fairing Block

1kw
50/200 kHz with Diplexer
15x21 degree Beam Angle at 50 khz
3x5 degree Beam Angle at 200 kHz
Bronze Thru-Hull with Temperature
10-Pin Connector
Ships with High-Speed Fairing Block AIR-033-523

The Clear Choice
This new 1 kW transducer makes 600 W fishfinders perform like their more powerful big brothers especially at 50 kHz. The B258 is 25 times more sensitive that a single element 50/200 kHz transducer. How does it do it? The B258 uses Airmars new and unique ceramic-element construction. The resulting narrow beams will clearly distinguish individual fish and bottom fish from their habitat at up to 2,200 feet.

Streamlined Performance
Maximize performance by installing the B258 with our custom fit high-performance fairing. At speeds over 30 knots, screen displays show clear images and a clean bottom trace.

Supercedes B256 transducer, with significant increase in performance at 50 kHz.

Recommended for sport fishing boats above 26' (8m) and small to mid size commercial fishing boats.

Includes temperature sensor

Transducer ID option

Warning WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Manufacturer Part Number: 525TID-BHD

Quick Specs
