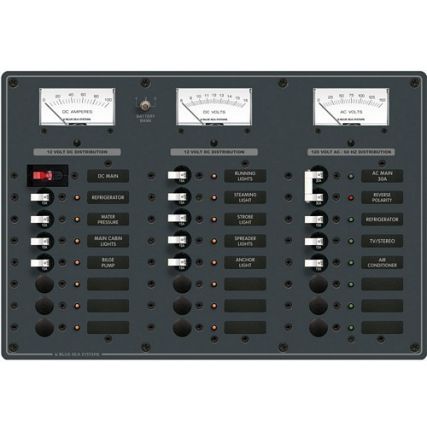

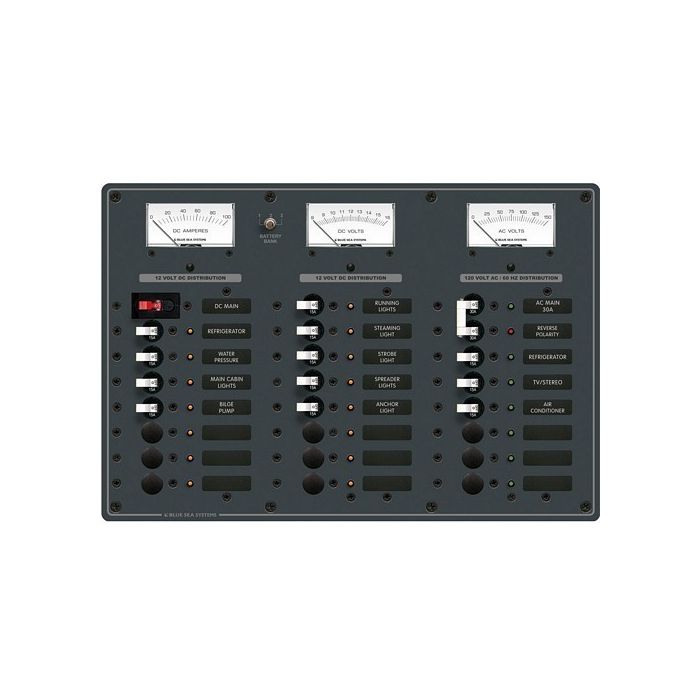

8084 AC Main +6 Positions/DC Main +15 Positions Toggle Circuit Breaker Panel - White Switches

Features:

• Includes set of 30 common AC and 30 common DC labels
• All AC and DC buses installed, fully pre-wired
• Label backlighting pre-installed
• All LEDs installed
• Maximum panel Amperage: 100 Amperes DC / 50 Amperes AC

AC Features:

• Red reverse polarity indicating LED
• Ready for installation of optional 4029 AC Isolation Cover
• 9353, 0-150 Volt AC Voltmeter

DC Features:

• 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
• 8003, 8-16 Volt DC Voltmeter
• 8017, 0-100 Amp DC Ammeter
• Owner upgradeable to 24 Volts with 8240, 18-32 Volt DC Voltmeter

Specifications:

• AC Positions: Main +6
• DC Positions: Main +15
• 120 Volts AC
• 12 Volts DC
• (1) 30A - (3) 15A AC Circuit Breakers
• (1) 100A - (9) 15A DC Circuit Breakers

*Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards
