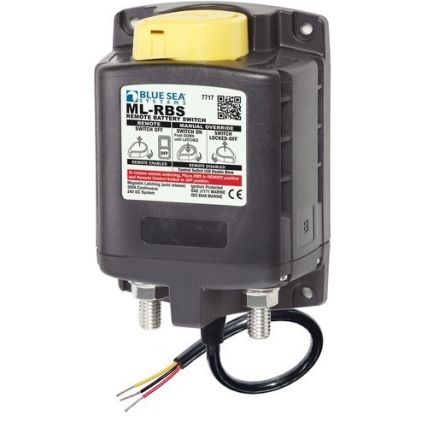

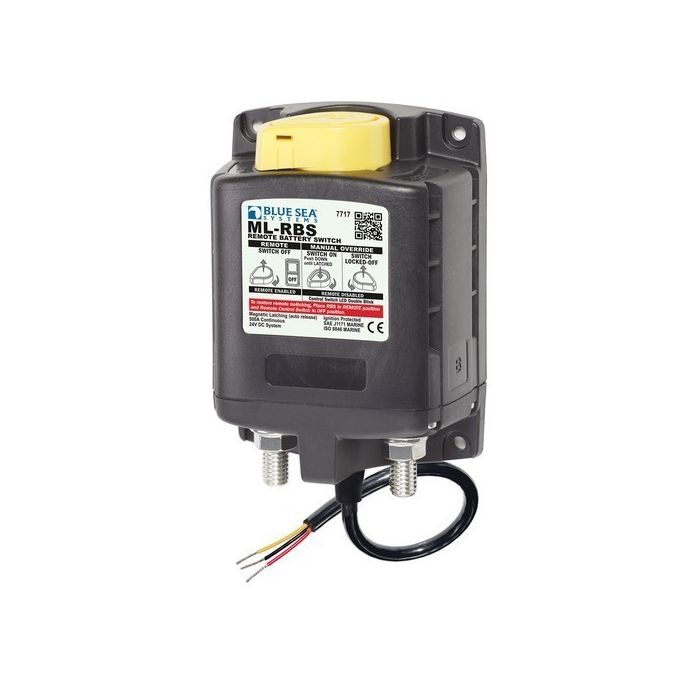

Blue Sea 7717 Ml-Rbs Remote Battery Switch W/Manual Control Auto-Release - 24v

Rating:

100 % of 100

1 Review Add Your Review

Special Price $218.91 Regular Price $408.99

In stock

SKU

BLU7717

Free Ground Shipping*

Condition: New

To Ship Out Next Business Day, Order This Item in the Next

BLUE SEA 7717 MLRBS REMOTE BATTERY SWITCH WMANUALMLRBS Remote Battery Switch with Manual Control AutoRelease 24VManual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for...

Products Q & A

Customer Questions

Did you find what you were looking for?

Your question:

Your name:

get notification on email when the answer is ready

Your e-mail:

Details

Blue Sea 7717 Ml-Rbs Remote Battery Switch W/Manual Control Auto-Release - 24v

ML-RBS Remote Battery Switch with Manual Control Auto-Release - 24V

Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
LED output to remotely indicate switch state - requires optional LED
3/ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
7/ 8" (22mm) stud length accepts multiple cable terminals
Label recesses for circuit identification
Silver alloy contacts provide high reliability for switching live loads

Auto Releasing ML-Series Remote Battery Switch with SPST Switching Provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired

Specifications
Control Circuit Connection:Tinned Wire
Nominal Voltage:24V DC
Manual Control: Yes
Coil Function: Auto releasing
Mounting: #10
Amperage Operating Current:8mA when OFF/13mA when ON
Amperage Operating Current when changing state: <4A (40 ms)
Control Circuit Voltage: 20.2 to 32.9V DC
Continuous Rating: 500A
Intermittent Rating: 700A (5 min)
Cranking Rating: 10 sec 2500A
Cranking Rating: 1 min 1100A
Minimum Operating Temperature: -10° C
Maximum Operating Temperature: 50° C
Cable Size to Meet Ratings: 2x (4/0)
Live Current Switching: 300A @ 12V DC 10,000 Cycles
Master Control Switch Capability: Yes
Mechanical Endurance: 100,000 Cycles
Switching Cycles: 100000
Terminal Ring Diameter Clearance: 1.18" (29.97mm)
Terminal Stud Length: 0.875" (22.23mm)
Terminal Stud Size: 3/8-16 (M10)
Terminal Stud Torque: 140 in-lb (15.82 Nm)
Weight: 1.75lb (0.79 kg)
